Continuous Performance In Extreme Conditions

-SIRKEN Spherical roller bearings for continuous casters.-

·Engineered For High Static Load-carrying Capacity And Wear Resistance

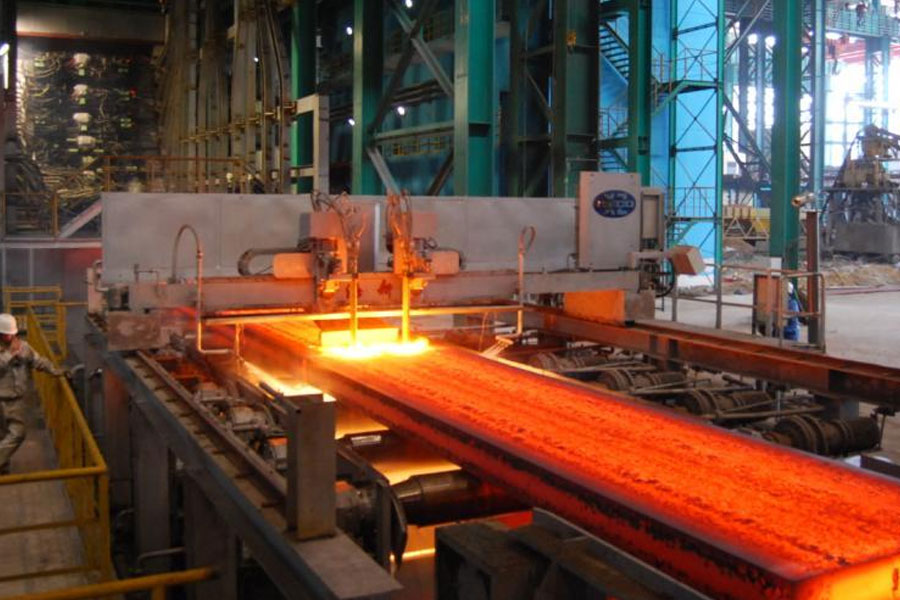

Extreme temperatures, very high loads, and contamination are just some challenges that continuous casting lines face. Frequent and costly shutdowns for maintenance are inevitable as water, mold powder, and scale get into bearing housings.

If a bearing fails, all production must be stopped causing costly, unplanned downtime. At the same time, there is constant pressure to optimize production and cut costs per ton.

The performance of rotating equipment is a major factor in reaching steel plants' production and cost-reduction targets. The intense global competition in the steel industry makes smooth mill operations important. SIRKEN has tapped into our years of experience in the steel industry to develop the SIRKEN Spherical roller bearings for continuous casters.

The bearings are designed to provide excellent performance, wear resistance and cost efficiency in the extreme operating conditions.

Designed specifically for continuous casting applications, they provide a number of advantages, including:

• High static load-carrying capacity
• Good wear resistance
• Superior crack resistance
• Optimized for lubrication
• Fully interchangeable with standard spherical roller bearings

·Increased Bearing Life

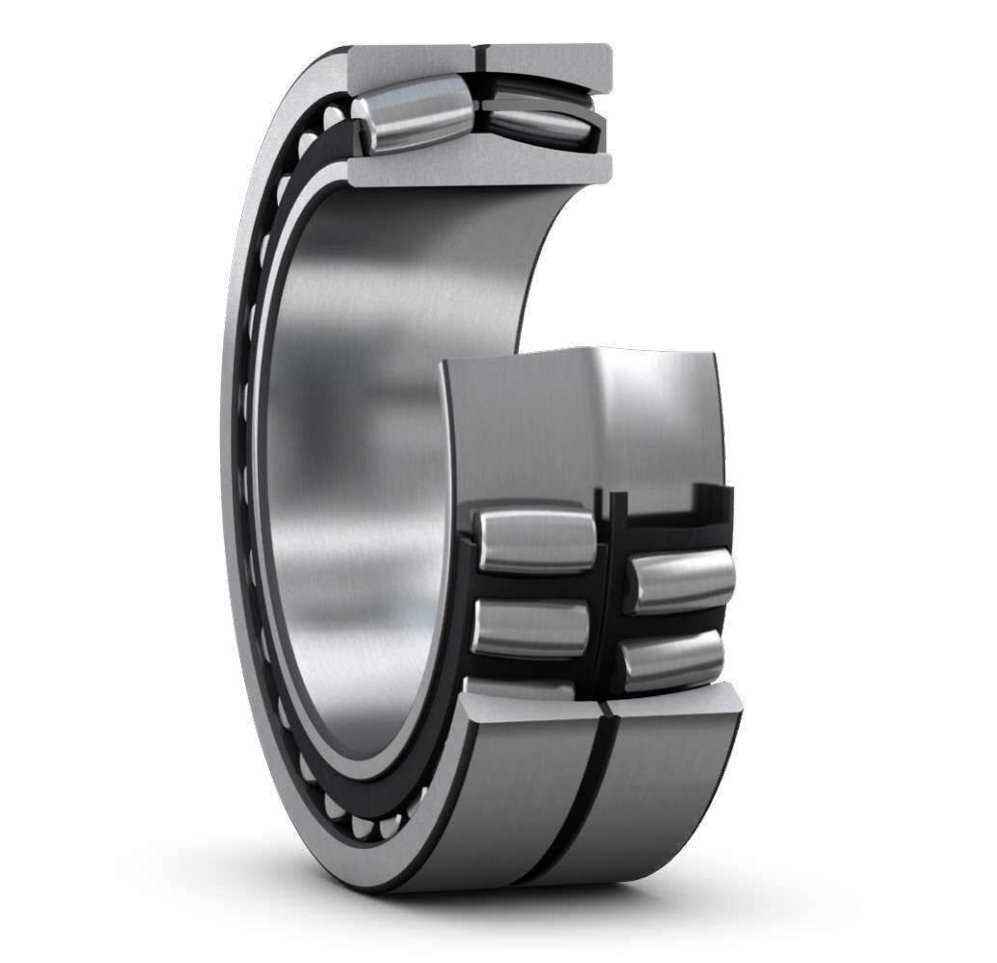

The SIRKEN Spherical roller bearings for continuous casters are optimized to provide excellent performance in the continuous casting machine environment.

The bearing is designed for robust performance. Superior, high-grade steel helps to prevent unplanned downtime and catastrophic machinery failure. The cage design is optimized for low-speed rotation. The internal design of the bearing includes a larger grease reservoir that provides an average of 10% increase in grease capacity as well as enhanced oil flow for air-oil lubrication.

During its life cycle, the bearing design reduces grease consumption, making the SIRKEN Spherical roller bearings for continuous casters an environmentally friendly and cost effective choice. The sum of these improvements contribute to increased uptime and a lower total cost of ownership.

Features

·Reduced maintenance time
·Lower production cost per ton
·Reduced environmental impact

·Continuous Caster Portfolio

SIRKEN is committed to driving innovation to increase bearing service life and creating cost efficiencies to enable price reduction. Continuous improvement allows this portfolio of superior application-specific bearings to solve customer pain points at a competitive price point.

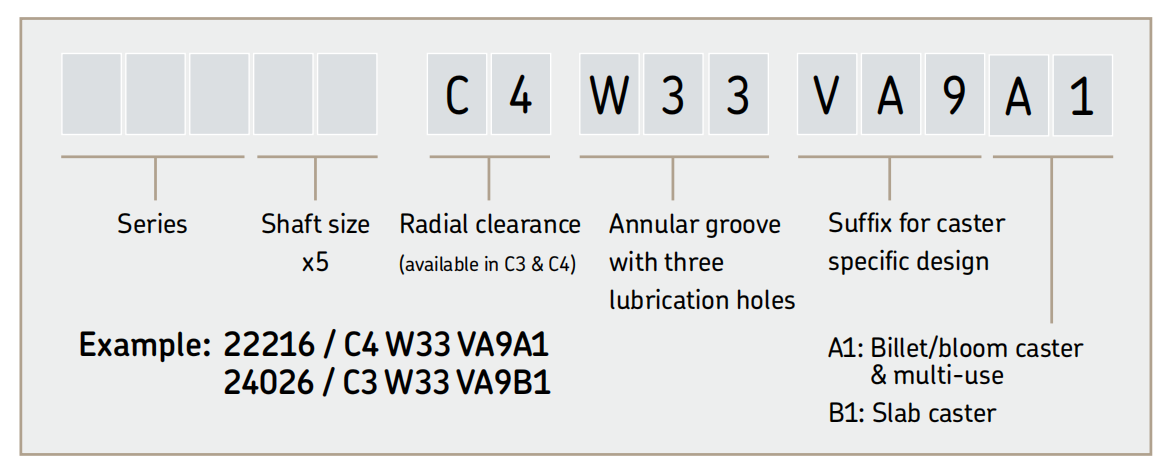

·Caster spherical roller bearing designation system

Spherical Roller Bearings For Continuous Caster Applications

d 70 – 170 mm

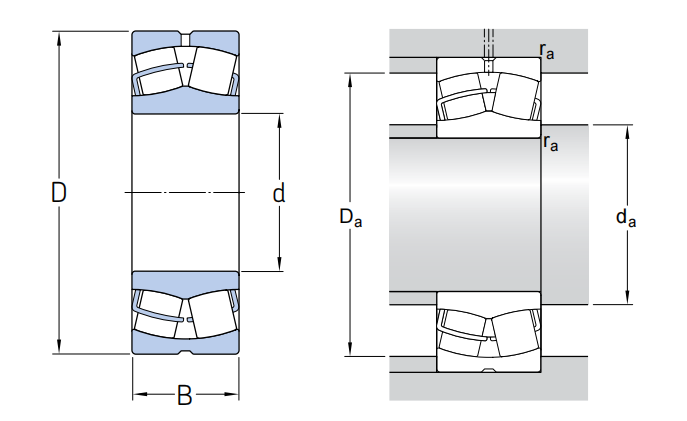

Principal Dimensions			Basic Static Load Ratings	Abutment		Fillet	Designations
d	D	B	_C0	D_amin	D_amin	r_amax	Designations
mm	mm	mm	lbf	mm	mm	mm
70	125	31	50,357	79	116	1.5	22214/C3W33VA9A1
70	125	31	50,357	79	116	1.5	22214/C4W33VA9A1
75	130	31	52,156	84	121	1.5	22215/C3W33VA9A1
75	130	31	52,156	84	121	1.5	22215/C4W33VA9A1
80	140	33	59,574	91	129	2	22216/C3W33VA9A1
80	140	33	59,574	91	129	2	22216/C4W33VA9A1
85	150	36	71,939	96	139	2	22217/C3W33VA9A1
85	150	36	71,939	96	139	2	22217/C4W33VA9A1
90	150	72	102,288	97	143	1	BS2B 243359C/VA9B1
90	160	40	80,931	101	149	2	22218/C3W33VA9A1
90	160	40	80,931	101	149	2	22218/C4W33VA9A1
95	170	43	96,668	107	158	2	22219/C3W33VA9A1
95	170	43	96,668	107	158	2	22219/C4W33VA9A1
100	165	52	110,156	111	154	2	23120/C3W33VA9B1
100	165	52	110,156	111	154	2	23120/C4W33VA9B1
100	180	46	106,784	112	168	2	22220/C3W33VA9A1
100	180	46	106,784	112	168	2	22220/C4W33VA9A1
100	180	60.3	134,885	112	168	2	23220/C3W33VA9B1
100	180	60.3	134,885	112	168	2	23220/C4W33VA9B1
110	170	60	139,382	119	161	2	24022/C3W33VA9B1
110	170	60	139,382	119	161	2	24022/C4W33VA9B1
110	200	53	139,382	122	188	2	22222/C3W33VA9A1
110	200	53	139,382	122	188	2	22222/C4W33VA9A1
110	180	56	131,513	121	169	2	23122/C3W33VA9B1
110	180	56	131,513	121	169	2	23122/C4W33VA9B1
110	180	69	168,607	121	169	2	24122/C3W33VA9B1
110	180	69	168.607	121	169	2	24122/C4W33VA9B1
120	215	58	168.607	132	203	2	22224/C3W33VA9A1
120	215	58	168,607	132	203	2	22224/C4W33VA9A1
120	260	86	251,786	134	246	2.5	22324/C3W33VA9B1
120	260	86	251.786	134	246	2.5	22324/C4W33VA9B1
120	180	60	150.622	129	171	2	24024/C3W33VA9B1
120	180	60	150,622	129	171	2	24024/C4W33VA9B1
130	200	69	183,219	139	191	2	24026/C3W33VA9B1
130	200	69	183,219	139	191	2	24026/C4W33VA9B1
130	210	80	224,809	141	199	2	24126/C3W33VA9B1
130	210	80	224,809	141	199	2	24126/C4W33VA9B1
140	210	69	202,328	149	201	2	24028/C3W33VA9B1
140	210	69	202,328	149	201	2	24028/C4W33VA9B1
140	225	85	260,778	152	213	2	24128/C3W33VA9B1
140	225	85	260,778	152	213	2	24128/C4W33VA9B1
150	225	56	168,607	161	214	2	23030/C3W33VA9B1
150	225	56	168,607	161	214	2	23030/C4W33VA9B1
150	225	75	233,801	161	214	2	24030/C3W33VA9B1
150	225	75	233,801	161	214	2	24030/C4W33VA9B1
150	250	100	343,958	162	238	2	24130/C3W33VA9B1
150	250	100	343,958	162	238	2	24130/C4W33VA9B1
160	340	114	440,626	177	323	3	22332/C3W33VA9B1
160	340	114	440,626	177	323	3	22332/C4W33VA9B1
160	240	80	269,771	171	229	2	24032/C3W33VA9B1
160	240	80	269,771	171	229	2	24032/C4W33VA9B1
160	270	109	395,664	172	258	2	24132/C3W33VA9B1
160	270	109	395,664	172	258	2	24132/C4W33VA9B1
170	260	90	328,221	181	249	2	24034/C3W33VA9B1
170	260	90	328,221	181	249	2	24034/C4W33VA9B1
Heat treatment: Stabilization class S1, up to 392°F (200°C) The recommended speed limit for continuous caster operations is <50 rpm
