124070/124112XC SIRKEN Super Precision Tapered Roller Bearings

Bearing Tech Information

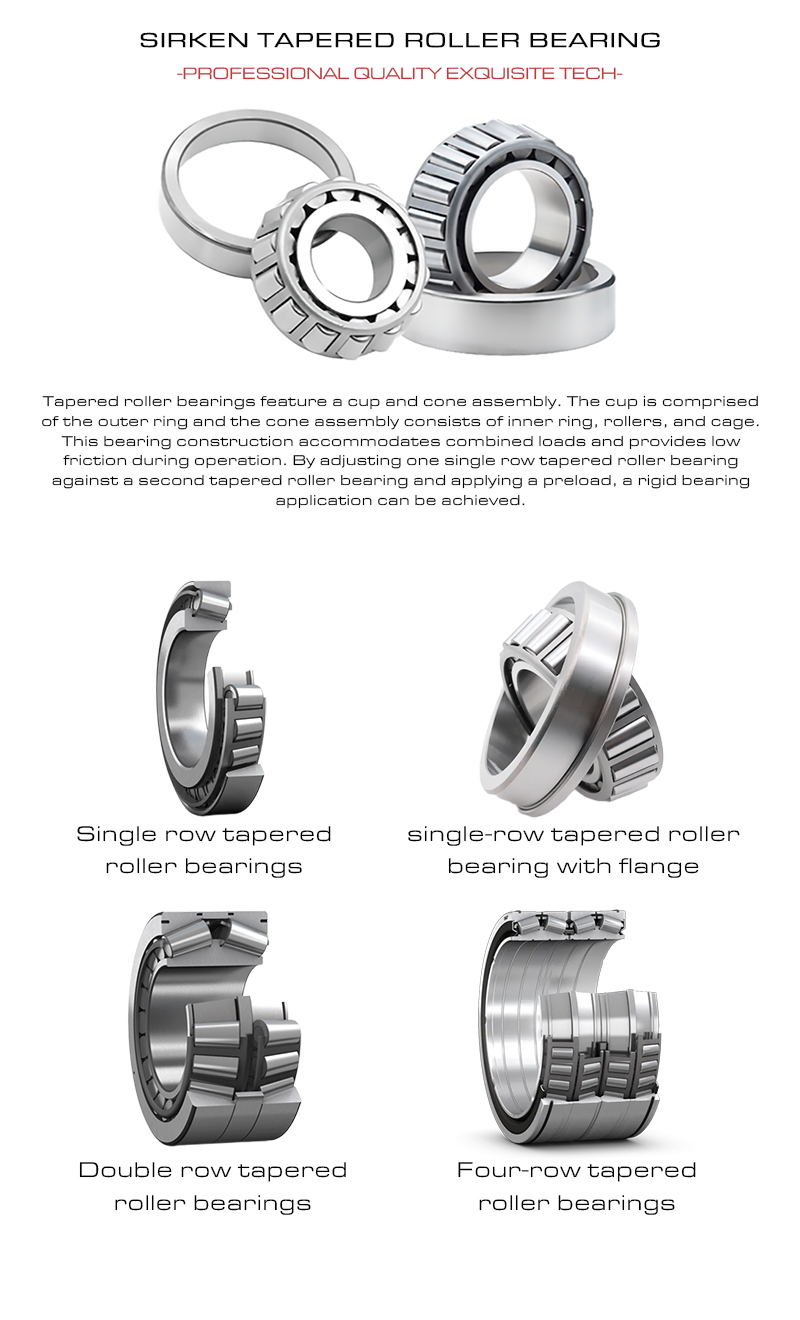

Super Precision Tapered Roller Bearing Flanged Cup Type

Bearing Name:124070/124112XC

d = 70.000mm
D = 112.712mm
T = 30.16mm
C = 23.81mm
B = 33.00mm
F = 6.35mm
G = 11.11mm
H = 4.76mm
J = 117.47mm
da = 86mm
r = 1.00mm
R = 2.50mm
Radial static stiffness = 82 daN/µ
Axial static stiffness = 13 daN/µ
Radial basic rating 10000hrs@500rpm = 2030 daN
Axial basic rating 10000hrs@500rpm = 1045 daN
Max speed = 5800 rpm
Weight = 0.995kg
Cone = 124070
Cup=124112XC
